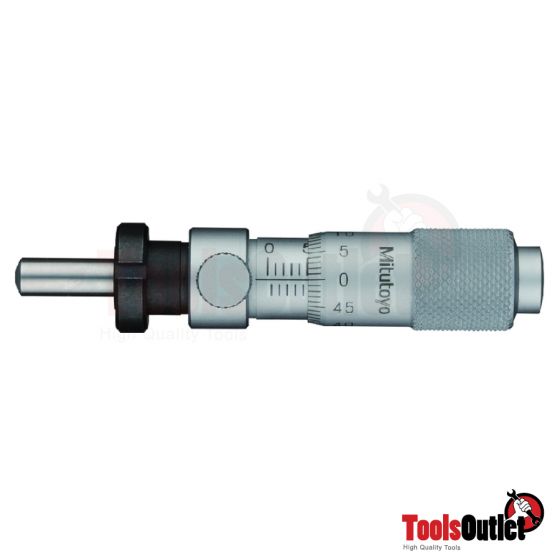

Micrometer Head หัวไมโครมิเตอร์ รุ่น 148-153 Mitutoyo
MICROMETER HEAD – LOCKING-SCREW TYPE – SERIES 148
MITUTOYO
Order no. 148-153
Range: 0-13mm
Description :
These micrometer heads feature a knurled locking screw so you can lock the spindle in any position with the knurled locking screw.
| ORDER NO. | 148-153 |
| Range: | 0 - 13 mm |
| Maximum Permissible Error J MPE: | ±2 µm |
| Spindle end: | Spherical (SR4) |
| Stem: |
w/ clamp nut
|
| Stem Ø: | 9.5 mm |
| Fixture thickness for clamp nut: |
6 mm |
| Mass: | 43 g |
| Measuring face: | Hardened steel (>60HRC) |
| Digital/Analog: | Analog |
| Inch-Metric: | Metric |
| Graduation: |
0.01 mm
|
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Mitutoyo |
|---|---|
| BRANDS | MITUTOYO |
| range micrometer | 0 - 25 mm. |
| Graduation | 0.01 mm. |
